Fairly large build on a customers 2011 V Coupe in the shop right now. Be sure to stay tuned to this one as I update the progress throughout the build.

A quick run down of the build-

2011 V Coupe, A6
Forged LSA, Stock crank, Callies Ultra Rods, Wiseco Pistons 9.25-1 Compression
ARP Hardware throughout
Advanced Induction 280cc CNCd LSA heads with LS9 Gaskets
Metco 2.5 upper/9.10 Lower with 50 & 100mm Idlers
Weapon X Double Wide HX
LPE Intercooler Pump
JHR Performance Intercooler Reservoir
NW102mm Throttle Body with JHR Ported snout
JHR Performance Aluminum 4.5" CAI
Nitrous Outlet Blower Plate System
JHR Performance Premium Camshaft Package (3 bolt Cam, Springs, PRs, Gaskets, Trunnions, upper 4x 3 bolt gear, etc)
Stainless Works 2" Headers/Cats/Corsa Exhaust
FIC 1000 Injectors
Weld Wheels with MT Drag Radials 17" Rear 18" Front (Customer wanted a full size tire in front)
JHR Performance Tuning with HP Tuners



Factory dyno pulls

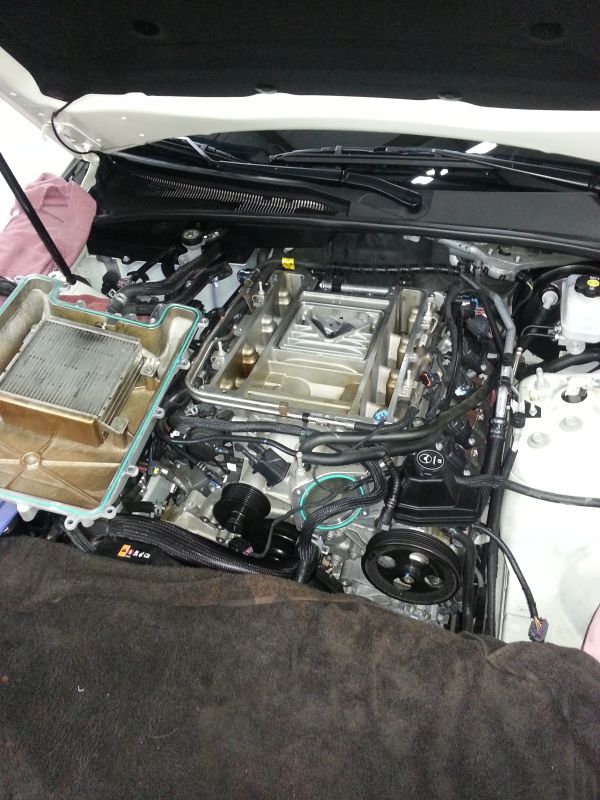

Tear down is underway!



Engine out!







Advanced Induction CNC 280cc Cylinder Heads





N20 Outlet :)



Weapon X Double Wide HX Peeking though

Stay tuned for further updates!

Zach


·
Premium Member
Joined
·
685 Posts
Nice build. Should be a rocket!


·
I'm Your Pusher
Joined
·
11,320 Posts
Great work guys! Sorry about the hx delay too. Caught me in the middle of a back order. Car is gonna be a rocket! Clean looking build too.


·
Registered
Joined
·
542 Posts
This build is going to be a monster!! Looking forward to the finished product.


·
Registered
Joined
·
63 Posts
Discussion Starter #8
Thanks everyone!

Zach

And Ben- We are in the process of making our own heat exchanger reservoirs. We just cant afford to continue to wait this long for a box to hold ice/water :) Thanks again for your help on the HX!


·
Registered
Joined
·
63 Posts
Discussion Starter #9
Just a quick update on the progress of the build-

Everything is installed and we are currently in the process of street tuning this V, while breaking in the engine. Hopefully we will have some dyno numbers by the end of the week, along with some 1/8 mile passes if everything works out according to plan. :)

Here are a few pics I snapped during the process. I will have completed project pictures when everything is said and done ready for the customer to pick the car up.

Enjoy-

Zach


Forged short block



Supercharger going together with JHR ported snout, Nitrous Outlet Blower Plate



·
Registered
Joined
·
63 Posts
Discussion Starter #10
Preliminary results were 680 RWHP on just 13 psi of boost on straight 93 octane. This thing is moving some air. The pulley combo on this car is a 2.55 upper and 9.10 lower, so we could spin it harder if we wish, but we will be putting a hefty amount of spray on it anyways. We are currently building a standalone system for the nitrous, and hope to have those results in a few weeks. The car at the current level has ran 6.80s in the 1/8th on boost only with some traction issues. M&H 315s are going on the back since we went with the 10.5" wide Weld wheel.

Zach


·
Registered
Joined
·
63 Posts
Discussion Starter #11
Enjoy some updated pictures. We just put the finishing touches on the JHR 4.5 CAI and JHR stand-alone fuel tank. The customer did not want a stand-alone in the trunk due to fuel smell, so this 1 gallon cell was built and installed under the hood. It houses a Walbro 255 fuel pump, and has a Aeromotive fuel pressure regulator mounted under it. We think it turned out great.

She will be going back on the dyno today to get the nitrous dialed in and then to the track if we can get some warm weather.









·
Registered
Joined
·
63 Posts
Discussion Starter #13
Update- Did a little more fine tuning on boost only (13 psi) and made a little over 700 RWHP. Here is a comparison graph of boost only vs a 250 jet in the Nitrous Outlet blower plate. The factory converter is a little unhappy on the initial hit of nitrous.

Zach
